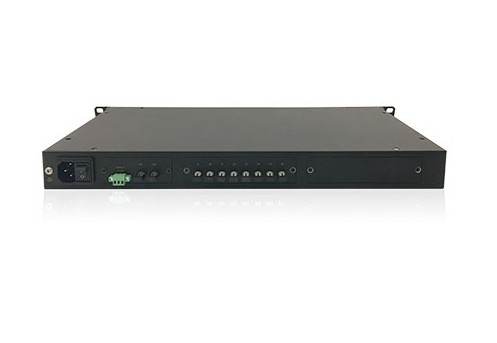

PTD-10
PTD-10 - конвертер для распределения синхронизированного сигнала на 16 выходов. Устройство поддерживает два входных сигнала в качестве источника времени, осуществляет проверку и точную синхронизацию входного сигнала с последующим распределением в большее количество IED. Есть возможность установить компенсацию задержки на кабеле для поддержания точности выходного сигнала.
Особенности:
- Максимум 2 входа в качестве источника времени резервирования для выбора источника наилучшего времени;
- Максимум 16 портов вывода для подключения IED;
- BNC разъемы, оптический интерфейс (многомод);
- Поддержка сигнала IRIG-B с B000, B001, B002, B003, B004, B005, B006 и B007;
- Компенсация задержки на кабеле может быть установлена вручную;
- Тревожный контакт;
- ЖК-дисплей.
| Functions | |
| Redundancy Time Source | PTD-10 Time Distributor can solve time redundancy input and install it before IED to verify input signal and select the best one as time source |
| Physical Media Converter | PTD-10 Time Distributor can provide TTL and Fiber Optical interface converter. |
| Port Capacity Expansion | PTD-10 Time Distributor can provide a flexible solution to expand more ports to connect more IEDs. |
| Long Distance Transmission | PTD-10 Time Distributor can be installed the middle of time server and IED to provide long distance signal transmission. |
| Time Input | Support maximum 2 input ports BNC Interface, optional optical fiber MM interface |
| Time Output | Support maximum 16 output ports Terminal Interface, optional optical fiber MM interface |
| Product Specifications | |
| Input Interface | TTL: 5VDC, 50Ω, BNC connector Optical (Optional): Multi-mode, 850nm or 1310nm, ST connector |
| Output Interface | TTL: Terminal connector Optical (Optional): Multi-mode, 850nm or 1310nm, ST connector |
| Display Operation Interface | LCD: 2*24 Characters, show status and make configuration Key: 4 keys to indicate Up, Down, Enter, Esc |
| LED | Power status: PSW Alarm status: ALARM Time input #1: S1 Time input #2: S2 Running status: RUN |
| Alarm Interface | Relay: NC and NO relay alarm contact, 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC Max, 3 A Max |
| Maintenance Interface | Console: RS232, RJ45, one port |
| Power Requirements | Power input: 100-240VAC,50/60Hz;110-220VDC(85-264VAC/85-300VDC) 24VDC(21.6-26.4VDC) 48VDC(43.2-52.8VDC) Power terminal: 3-pin 7.62 mm-spacing plug-in terminal block Power Consumption: <18W |
| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Dimensions(WxHxD): 482.6mm×44.2mm×229mm (19×1.74×9.02 in.) Weight: <3Kg (6.61pound) |
| Environmental limits | Operating temperature: -20°C to +70°C (-4°F to 158°F) Storage temperature: -40°C to +85°C (-40°F to 185°F) Ambient Relative Humidity: 5% to 95% (non-condensing) |
| Quality assurance | Warranty: 5 years |
| Approvals | |
| Product Performance | |
| Time Accuracy | ±50ns (Input to Output) |
| IRIG-B Demodulated Signal | B000,B001,B002,B003,B004,B005,B006,B007 |
| MODEL | |
| FT208S | Fiber/TTL, 2 Inputs, 8 Outputs, Management |
| FT216S | Fiber/TTL, 2 Inputs, 16 Outputs, Management |
| POWER | |
| 3 | 48VDC(43.2-52.8VDC) Single |
| 5 | 24VDC(21.6-26.4VDC) Single |
| 7 | 100-240VAC,50/60Hz;110-220VDC(85-264VAC/85-300VDC) Single |
| INPUT | |
| 1 | TTL BNC |
| 2 | Optical ST, MM 850nm |
| 3 | Optical ST, MM 1310nm (Customized Interface) |
| OUTPUT | |
| 1 | TTL Terminal |
| 2 | Optical ST, MM 850nm |
| 3 | Optical ST, MM 1310nm (Customized Interface) |
| Order Information | Description | |
| PO (DEMO) | PTD-10-FT216S-7-11 | 100-240VAC,50/60Hz;110-220VDC(85-264VAC/85-300VDC) Single 2 TTL BNC input ports 16 TTL Terminal output ports Management |
Габариты:
