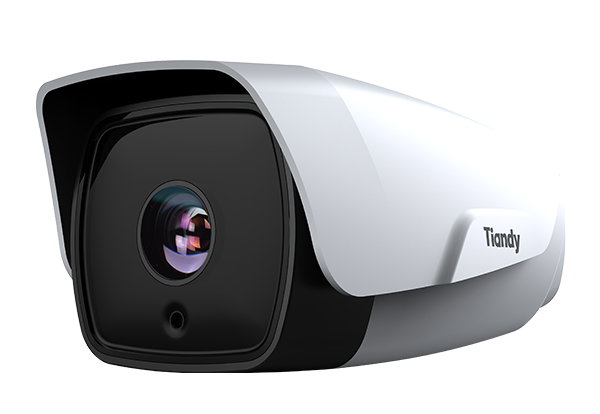

TC-NC294X

Производитель: Tiandy

Описание:

2MP Super Starlight EXIR Bullet камера c ИК до 30 м.

Общая информация
Характеристики

2 Мп Super Starlight EXIR Bullet камера с ИК до 30 м. c высокой чувствительностью, поддержкой PoE, с широким диапазоном рабочих температур.

Особенности:

Starlight Ultra Low Light 0.0008lux;
Разрешение 1080P (1920×1080@30fps);
Формат видесжатия H.265/H.264 HP/MP/BP/M-JPEG;
Мин. световая чувствительность: 0.0008 Lux,B/W: 0.001 Lux, 0 Lux with IR;
Механический WDR 140dB;
Браузеры: Chrome,Firefox, Safari, Plug-in Free
ИК-подсветка (Smart IR) до 30 м;
Дизайн "Cable Free"
VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object;
NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
Аудио вход / выход 1/0, тревожный вход / выход 1/0;
Cлот для карты Micro SD, до 128GB, кнопка сброса;
Грозозащита TVS 6000В/ защита от перенапряжения 2000В, IP67;
Питание DC12 В ± 10%, поддержка PoE (802.3af);
Рабочая температура: от -35 °C до 60 °
Пластиковый корпус

Camera
Image Sensor	1/2.7" CMOS
Core Processor	ARM9 Architecture
Operating System	Embedded Linux
Signal System	PAL/NTSC
Min. Illumination	Color: 0.5 Lux @(F1.2, AGC ON)
Min. Illumination	B/W: 0.25Lux @(F1.2, AGC ON); 0 Lux with IR
Shutter Time	1s to 1/100,000s
Lens	4mm, Angle of View: 89.8°
Lens Mount	φ12
Auto Iris	N/A
Day& Night	IR Cut Filter with Auto Switch
WDR	100 dB
DNR	3D DNR
S/N Ratio	>60dB
Compression Standard
Video Compression	H.264/MJPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM
Audio Bit Rate	G711 8KHz, 64kbps
Audio Bit Rate	ADPCM 8KHz, 32kbps
Max. Image Resolution	1920x1080
Frame Rate	50Hz: 25fps (1920 × 1080), 25fps (1280 × 720)
Frame Rate	60Hz: 30fps (1920 × 1080), 30fps (1280 × 720)
Triple Stream	Mainstream:1080P(1920*1080)
	Substream:D1(704*576)
	3rd stream:CIF(352*288)
Image Settings	Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser
HLC	Y
Smart Defog	Y
Corridor Format	Y, Available for 720P and Above
EIS	Y
ROI	4 Zones
Privacy Mask	4 Zones
Picture Overlay	200 × 200, BMP 24bit, Zone Configurable
OSD	Size:16×16, 32×32, 24×24, 48×48, 64×64, 96×96
OSD	Letters, Week, Date, Time, Total 5 Regions
Network
Browser	CHROME V45 or lower, IE, FIREFOX
Network Storage	FTP
NTP	Y
ANR	Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
Video Analytics	Tripwire/Perimeter
Alarm Trigger	Motion Detection/IP Conflict/MAC Conflict/Port Alarm/Mask Alarm
Protocols	IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/NTP/RTSP
Protocols	/TCP/UDP/DHCP/PPPoE/HTTPS/ARP/RTP/QoS/MULITCAST/ICMP/IGMP
User Permission	4 Level/8 Users
Remote Connection	3 Users Access at the Same Time
NTP	Y
System Compatibility	ONVIF (Profile S), SDK
Interface
Audio Input	N/A
Audio Output	N/A
Communication Interface	1-ch RJ45 10M / 100M Ethernet Interface
Alarm Input	N/A
Alarm Output	N/A
Video Output	N/A
General
Language	English,Simplified Chinese
Operating Conditions	-35??60?(IR OFF) /-35??40?(IR ON), 0?95% RHG
Power Supply	DC 12V±10%,PoE (802.3af)
Power Consumption	Max. 5W(IR OFF) (ICR Instant Switch 8.5W)
Power Consumption	Max. 7W(IR ON)
Circuit Protection	TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
Impact Protection	IP67
IR Range	20m
IR LEDs	1pcs Array
Dimensions	178mm×100mm×94mm
Weight	0.5KG (IP Camera Only); 0.7KG (with Packing Box)

ANR:	Auto store video in SD card when NVR disconnected, and upload video to
	NVR when resumed connection(Only Support Tiandy ANR NVR)
