Video/Audio Input |
Video Input |
160-ch |
Audio Input |
1-ch, 3.5mm |
Network |
Incoming Bandwidth |
960Mbps |
Outgoing Bandwidth |
480Mbps |
Mobile Software |
P2P&DDNS for IOS&Android |
Internet Protocol |
TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SADP/SNMP |
Email |
Activated by Alarm |
ANR |
Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera) |
Advanced |
Remaining Bandwidth Display, Flow Monitor, Capture Package |
Video/Audio Output |
HDMI Output |
2-ch Resolution:3840×2160,2560×1600?2560×1440?1920×1080?1280×720?
800×600,1024×768,1366×768,1440×900,1280×800 |
VGA Output |
1-ch Resolution: 1920×1080?1600x1200, 1280x1024, 280×720?800×600,1024×768?1366×768,1440×900,1280×800 Adjustable Output mode, Self-adaptive Resolution |
Frame Rate |
Mainstream 25fps(P)/30fps(N) Substream 25fps(P)/30fps(N) |
I-Frame Record |
Y, Only Record Key Frame to Lower Frame Rate |
Recording Resolution |
4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output |
2-ch, 1-ch BNC(Linear Electrical Level, 600Ω) ,1-ch 3.5mm |
Synchronous Playback |
4-ch 4K/6MP/5-ch 5MP/8-ch 4MP/9-ch 3MP/16-ch 1080P/720P/4CIF |
Decoding |
Live View/Playback |
12MP/4K/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability |
4-ch 4K/6MP/5-ch 5MP/8-ch 4MP/9-ch 3MP/16-ch 1080P/32-ch 720P/64-ch 4CIF |
Display Split |
1/3/4/6/8/9/10/13/16/20/25/32/36/40/64 |
E-Zoom |
Y |
Hard Disk |
SATA |
24 SATA for 24 HDDs (Hot Swap) |
eSATA |
Y, Only for Backup |
Capacity |
Up to 10TB Capacity for Each HDD |
NTFS Files System |
Y |
HDD Management |
Group and Quota,Customized Recording Days |
RAID |
RAID Mode |
JBOD,RAID0,RAID1,RAID5,RAID6,RAID10?RAID50, RAID60 (>0?, Each Raid Group Supports up to 100Mbps Input) |
Hot Backup Disk |
Overall and Raid Hot Backup Disk |
RAID Management |
One-key Configuration, and Support Manual and Auto Rebuild |
Redundant Recording |
Y, Support 200Mbps Input |
External Interface |
Network Interface |
4 100/1000Mbps Self-adaptive Ethernet Interfaces |
Serial Interface |
10 RS-485, 1 RS-232 |
USB Interface |
2x USB3.0, 4x USB2.0 |
Alarm In/Out |
8 /4 |
Advance |
NAS |
NFS Protocol, Support Manual Backup Only |
Plug and Play |
Y, Only for Tiandy Cameras |
Image Flip |
Y, Only for Tiandy Cameras |
Hot Standby |
N+M |
Corridor Mode |
Y, 16:9 to 9:16, Only for Tiandy Cameras |
Video Analytics(VCA) |
Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection/intelligenct tracking |
Smart Search |
Quickly Search Target Videos according to Channel No., Records Type, Records Time, File Type and VCA( Only for Tiandy Cameras ) |
Trigger Recording |
Manual/Timing/Motion Detection/Port Alarm/VCA/Video Occlusion |
Smart Recording |
Set Different Recording Bite Rate for Different Time |
Alarm Recording |
Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ). |
One Key Control |
Intercom, Recording |
Records Format |
SDV, Export MP4 in H.264 Format |
Records Encryption |
Y |
Records Tag |
Y |
Onvif |
Onvif(Profile S) |
General |
Languge |
English, Spanish, Korean, Italian,Turkish,Thai, Russian, Traditional Chinese,Simplified Chinese, French, Polish |
Power Supply |
100 ~ 240V AC, 50 ~ 60Hz, |
Consumption(without HDD) |
Max 610w,Average 650w |
Working Temperature |
0??50? |
Working Humidity |
10 % ~ 90 % |

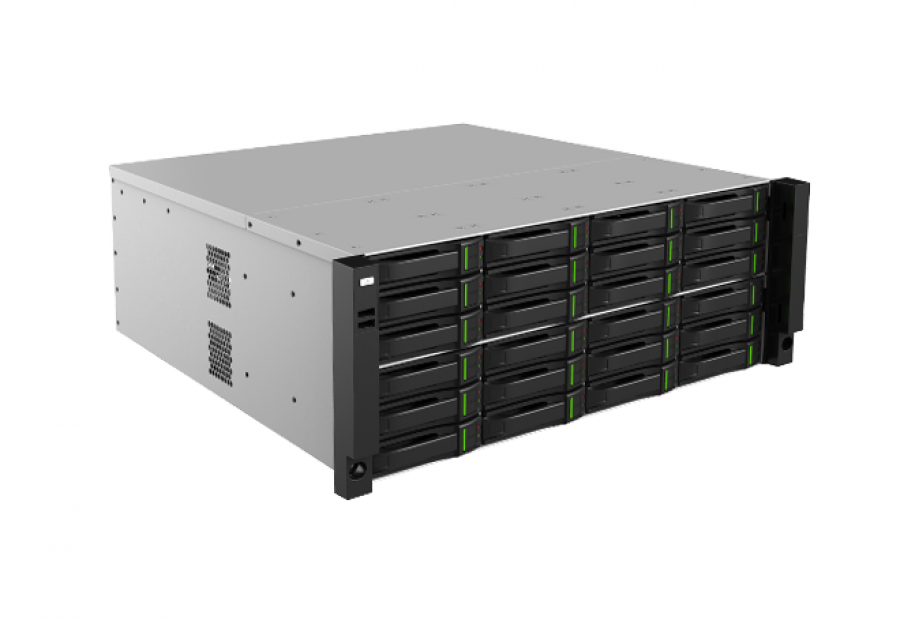

Chassis |
4U |
Dimensions |
542mm×446.6mm×173.8mm |
Weight |
25Kg (without HDD) |
