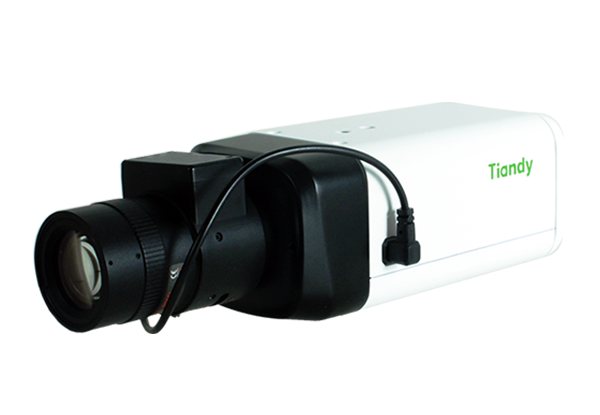

TC-NC27VX
Особенности:
- Starlight Ultra Low Light 0.0008lux;
- Разрешение 1080P (1920×1080@60fps);
- Формат видесжатия H.265/H.264 HP/MP/BP/M-JPEG;
- Мин. световая чувствительность: 0.0008 Lux,B/W: 0.001 Lux, 0 Lux with IR;
- Механический WDR 140dB;
- Браузеры: Chrome,Firefox, Safari, Plug-in Free
- VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection;
- NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
- Аудио вход / выход 1/0, тревожный вход / выход 1/0;
- Cлот для карты Micro SD слот до 512G, до 128GB, кнопка сброса;
- Грозозащита TVS 6000В/ защита от перенапряжения 2000В, IP67;
- Питание DC12 В ± 10%, поддержка PoE (802.3af);
- Рабочая температура: от -35 °C до 60 °
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Core Processor | ARM9 Architecture |
| Operating System | Embedded LINUX |
| Signal System | PAL/NTSC |
| Mini. Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) B/W: 0.0001Lux @(F1.2, AGC ON) |
| Shutter Time | 1s~1/100000s |
| Lens Interface Type | C/CS |
| Day& Night | IR Cut Filter With Auto Switch |
| Wide Dynamic Range | 140 dB |
| Digital Noise Reduction | 3D DNR |
| S/N Ratio | >60dB |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264H/H.264M/H.264B/MJPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | G711 8KHz, 64kbps |
| ADPCM 8KHz, 32kbps | |
| AAC 48KHz, 96-320kbps | |
| Frame Rate | 50Hz: 25fps (1920 × 1080), 25fps (1280 × 720) |
| 60Hz: 30fps (1920 × 1080), 30fps (1280 × 720) | |
| Triple Stream | Mainstream:1080P(1920*1080) |
| Substream:D1(704*576) | |
| 3rd stream:CIF(352*288) | |
| Image Settings | Brightness, Saturation, Contrast,Flip Mode |
| ABF | Y?Auto Adjust ±1mm Back Focus? |
| HLC | Y |
| Smart Defog | Y |
| Corridor Format | Y, Available for 720P and Above |
| EIS | Y |
| ROI | 8 Zones |
| Privacy Mask | 4 Zones |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| OSD | 16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions |
| Network | |
| Browser | CHROME V45 or lower, IE, FIREFOX |
| Network Storage | FTP |
| NTP | Y |
| ANR | Y |
| Video Analytics | Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost |
| Running/Loitering/Parking/Crowd/Face Detection/People Counting | |
| Audio Abnormal Detection/Video Abnormal Detection/On duty Detection | |
| Protocols | IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/ICMP/IGMP |
| /NTP/RTSP/TCP/UDP/DHCP/PPPoE/HTTPS/ARP/RTP/QoS/MULITCAST | |
| User Permission | 4 Level/8 users |
| Remote Connection | 8 Users Access at the Same Time |
| System Compatibility | ONVIF (Profile S), SDK |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Ethernet | 2-ch RJ45 100M / 1000M Ethernet Interface(Support 2 IP Address) |
| Alarm Input | 2-ch |
| Alarm Output | 1-ch |
| Video Output | 1Vp-p Composite Output?75Ω/BNC? |
| On-board Storage | Dual MicroSD Card Slots, up to 512GB |
| RS485 | Y |
| RS232 | Y |
| Extension | USBx1 |
| General | |
| Language | English,Spanish,Korean,Italian,Turkish,Thai,Russian |
| Polish,French,Traditional Chinese,Simplified Chinese | |
| Power Supply | DC 12V±10%/AC24V±10%/PoE |
| Power Consumption | Max. 6W |
| Circuit Protection | TVS 6000V, Lightning/Surge 2000V |
| Dimensions | 145mm×71mm×58mm |
| Weight | 0.5KG (IP Camera Only); 0.7KG (With Packing Box) |
| S+265: | Tiandy enhanced H.265 codec |
| ANR: | Auto store video in SD card when NVR disconnected, and upload video to |
| NVR when resumed connection(Only Support Tiandy ANR NVR) | |
