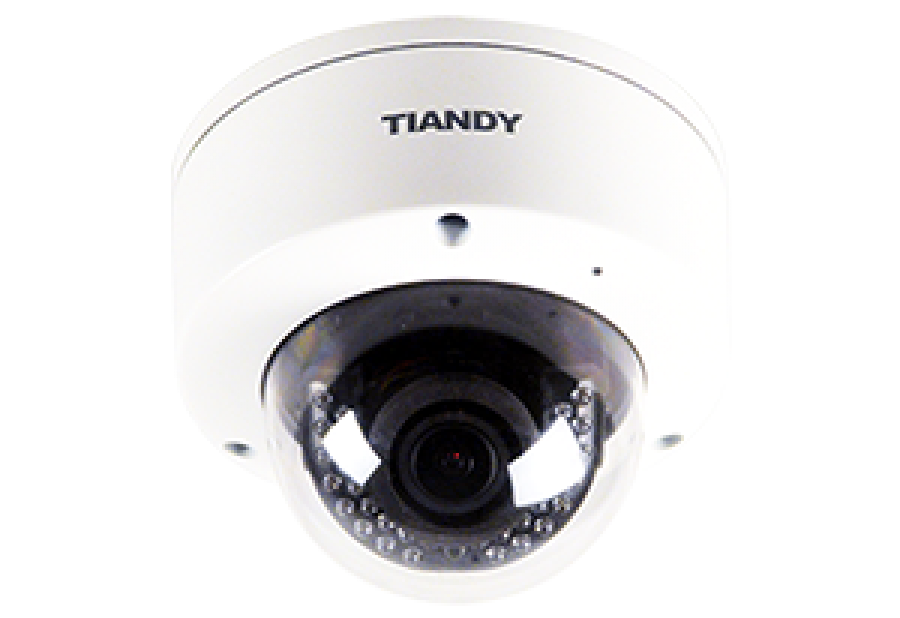

| Camera |
| Image Sensor |
1/2.8" CMOS |
| Core Processor |
ARM9 Architecture |
| Operating System |
Embedded Linux |
| Signal System |
PAL/NTSC |
| Min. Illumination |
Color: 0.5 Lux @(F1.2, AGC ON) |
| B/W: 0.25Lux @(F1.2, AGC ON); 0 Lux with IR |
| Shutter Time |
1s to 1/100,000s |
| Lens |
2.8-12mm, Angle of View: 88.1°?31.2° |
| Lens Mount |
φ14 |
| Auto Iris |
N/A |
| Adjustment Range |
Pan:0° - 355°, Tilt: 0°- 75°, Rotation: 0° - 355° |
| Day& Night |
IR Cut Filter with Auto Switch |
| Wide Dynamic Range |
100 dB |
| Digital Noise Reduction |
3D DNR |
| Focus |
Manual |
| Compression Standard |
| Video Compression |
H.264/MJPEG |
| Video Bit Rate |
32Kbps~16Mbps |
| Audio Compression |
G.711A/G.711U/ADPCM |
| Audio Bit Rate |
G711 8KHz, 64kbps
ADPCM 8KHz, 32kbps |
| Image |
| Max. Image Resolution |
1920x1080 |
| Frame Rate |
50Hz: 25fps (1920 × 1080), 25fps (1280 × 720) |
| 60Hz: 30fps (1920 × 1080), 30fps (1280 × 720) |
| Triple Stream |
Mainstream:1080P(1920*1080) |
| Substream:D1(704*576) |
| 3rd stream:CIF(352*288) |
| Image Settings |
Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser |
| HLC |
Y |
| Smart Defog |
Y |
| Corridor Format |
Y, Available for 720P and Above |
| EIS |
Y |
| ROI |
4 Zones |
| Privacy Mask |
4 Zones |
| Picture Overlay |
200 × 200, BMP 24bit, Zone Configurable |
| OSD |
16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions |
| Network |
| Browser |
IE8,IE9,IE10,IE11,Firefox24 |
| Network Storage |
FTP |
| NTP |
Y |
| ANR |
Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR) |
| Video Analytics |
Tripwire/Perimeter |
| Alarm Trigger |
Motion Detection/IP Conflict/MAC Conflict/Port Alarm/Mask Alarm |
| Protocols |
IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/NTP/RTSP/TCP/UDP/DHCP/PPPoE |
| User Permission |
4 Level/8 Users |
| Remote Connection |
3 Users Access at the Same Time |
| NTP |
Y |
| System Compatibility |
ONVIF (Profile S), SDK |
| Interface |
| Audio Input |
1-ch |
| Audio Output |
1-ch |
| Communication Interface |
1-ch RJ45 10M / 100M Ethernet Interface |
| Alarm Input |
1-ch |
| Alarm Output |
N/A |
| Video Output |
N/A |
| On-board Storage |
MicroSD Card Slot, up to 128GB |
| Extension |
1x USB |
| General |
| Language |
English,Spanish,Korean,Italian,Turkish,Thai,Russian,Traditional Chinese,Simplified Chinese |
| Operating Conditions |
-40??70? , 0~95% RHG |
| Warehouse Conditions |
-55??85? , 0~95% RHG |
| Power Supply |
DC 12V±10%/AC24V±10%/PoE |
| Power Consumption |
Max. 5W(IR OFF) (ICR Instant Switch 11W) |
| Max. 8W(IR ON) |
| Circuit Protection |
TVS6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V) |
| Impact Protection |
IP66, IK10 |
| IR Range |
30m |
| IR LEDs |
32pcs |
| Dimensions |
150mm×150mm×122mm |
| Weight |
1.0KG (IP Camera Only); 1.3KG (with Packing Box) |
