Производитель: Digicom

Описание:

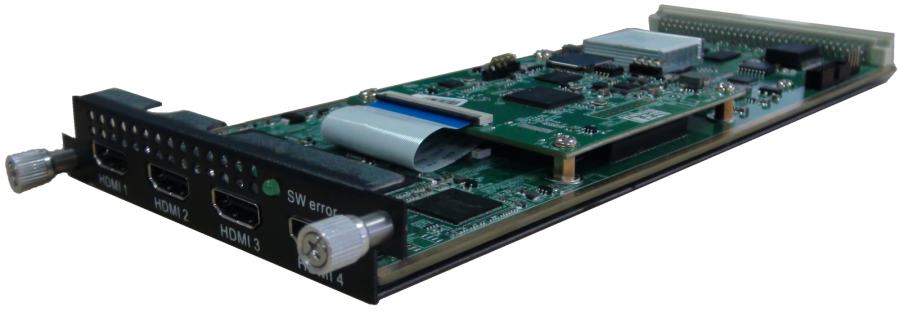

4 HDMI/SDI  Encoding Module

4 HDMI/SDI  Encoding Module (DX224V)

Module Specifications:

Input: 4×SDI/HDMI (1.4) input, HDCP 1.4

Output: 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

HDMI-Version?:

3840×2160_30P, 3840×2160_29.97P;

(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264)

1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P

(Encoding 4 CHs per module for H.264 and H.265)

HDMI-Version?/SDI:

1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P

(Encoding 4 CHs per module for H.264 and H.265)

Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i

Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

Chroma: 4:2:0              Bit rate: 0.5Mbps~20Mbps (each channel)

Rate Control: CBR/VBR      GOP structure: IBBP, IPPP

Audio Encoding:

Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2

Sampling rate: 48KHz

Bit-rate (each channel):

48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)

24 Kbps~128 Kbps (HE-AAC)

18 Kbps~56 Kbps (HE-AAC V2)

Audio Gain: 0~255
