DG-DX306I

Производитель: Digicom

Описание:

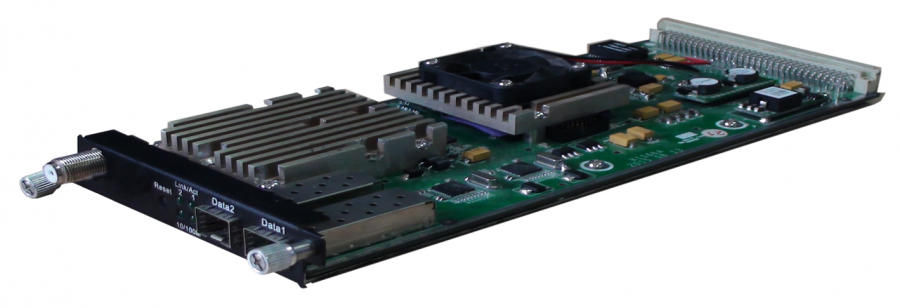

6 ISDB-Tb Modulating Module

6 ISDB-Tb Modulating Module (DX306I)

Module Specifications:

Data input: 128 IP input from front panel Data port

192 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP)

Data output: 6 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)

Trans Rate: Max 840Mbps/GE Port

RF output (F type): 6 channels of multiplexing and modualtion.

Multiplexing:

Input Channel: 192

Maximum PID Remapping: 180 input per channel

Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

Modulation:

Standard: ARIB STD-B31

Bandwidth: 6M Constellation: QPSK, 16QAM, 64QAM

Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission Mode: 2K, 4K, 8K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥40dB

RF frequency: 50~960MHz, 1KHz step

RF output level: -20dBm~+10dBm (87~117dbµV), 0.1dB stepping
