Производитель: Digicom

Описание:

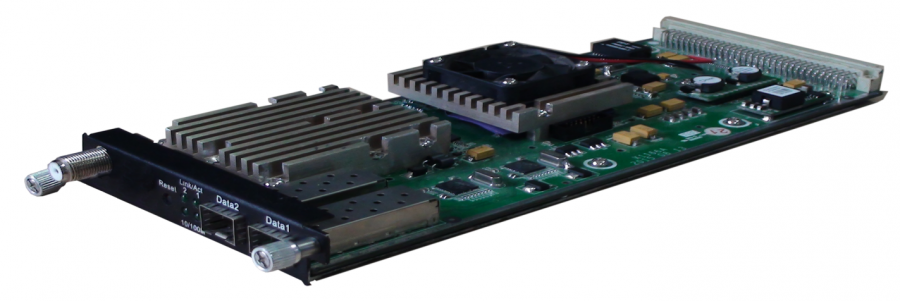

8 DVB-T Modulating Module

8 DVB-T Modulating Module(DX308T)

Module Specifications:

Data input: 128 IP input from front panel Data port

                    256 IP input over UDP/RTP, 2GE Ports (RJ45/SFP)

Data output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)

Trans Rate: Max 840Mbps/GE Port

RF Output (F type): 8 non-adjacent carrier outputs within 192M bandwidth

Multiplexing:

Channel Number: 8 multiplexing channels

Maximum PID Remapping: 180 input per channel

Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

Modulation: (8*DVB-T)

Standard: ETSI EN300 744      MER: ≥40db

RF Frequency: 50~960MHz, 1KHz step

Constellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz

Trans mode: 2K/4K/8K    FEC: 1/2, 2/3, 3/4, 5/6, 7/8

RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping
