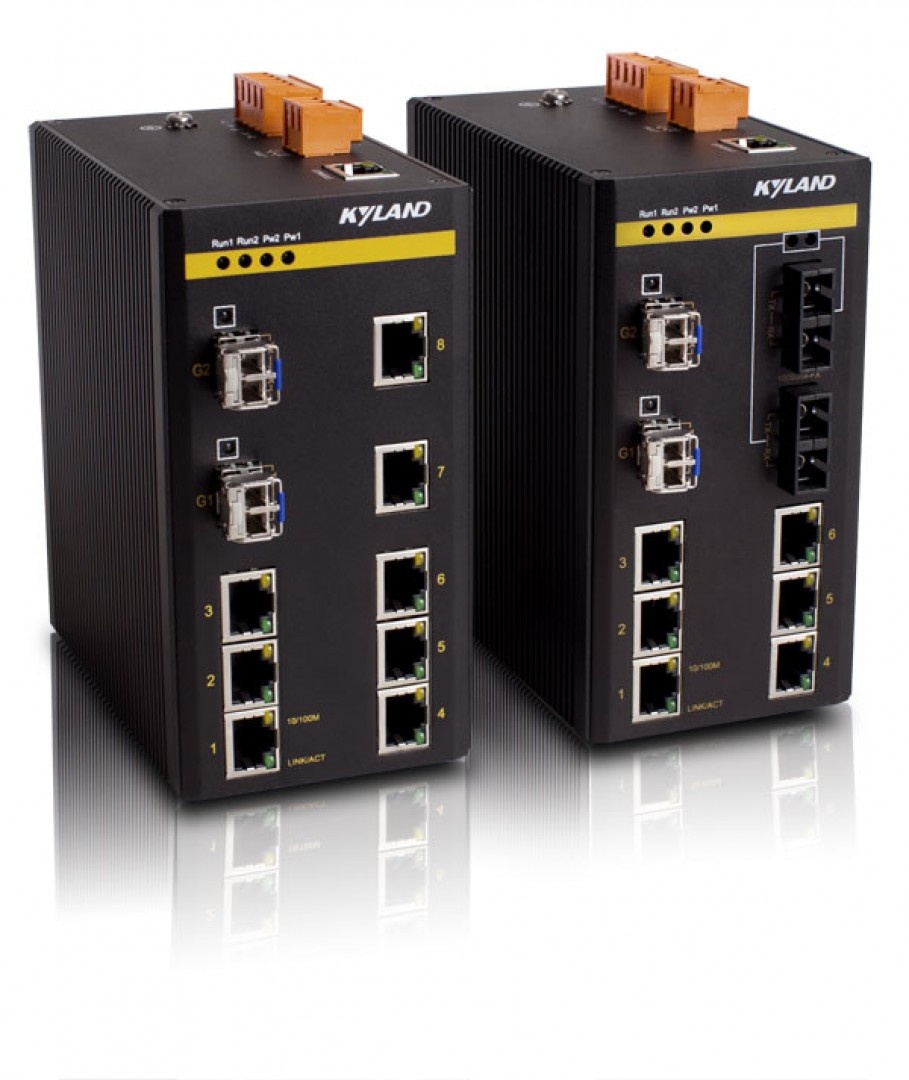

SICOM3000

Производитель: Kyland

Описание:

Управляемый коммутатор Layer 2: 8+2G порта, установка на Din-Rail, IEC61850

SICOM3000 – серия гигабитных управляемых коммутаторов на DIN-рейку, разработанных специально для систем передачи данных в энергетике, на транспорте, в горнодобывающей промышленности и др. Коммутатор имеет до 10 портов - 2 гигабитных слота под SFP, 2 оптических порта 100M и 6 медных портов 100M или 8 медных портов 100M. Прочный корпус без вентилятора с гофрированной поверхностью, способность работать в широком температурном диапазоне  позволяет устройству стабильно работать в экстремальных промышленных условиях. Централизованное управление сетью на базе CLI, WEB-интерфейса и специализированного ПО Kyvision. Передовое программное обеспечение ОРС позволяет осуществлять управление различными промышленными ОСПД.

Обновление: Новые версии устройств с поддержкой универсальных источников питания c широким диапазоном вх. напряжений 12DCW (9-36VDC), 24DCW (18-72VDC) и 220AC/DCW (85-264VAC/77-300VDC)

Особенности

1.Имеет  до 2 Гб порта (SFP), 2 порта Fast Ethernet (оптика SC,ST,FC/ медь RJ45) и 6 x 10/100Base-TX (RJ45)
2.Протоколы резервирования DT-Ring, MSTP и IEC62439-6/DRP
3.Поддержка GMRP, DHCP, SNMP, QoS
4.Безопасность сети: SNMPv3, HTTPS, SSH, DT-Psec
5.Сертификаты UL508, CE, FCC
6. Рабочая температура: от -40 до 85°C
7. Класс защиты IP40

Возможности устройства

1. Резервирование: протоколы DT-Ring (время восстановления < 50мс), MSTP и IEC62439-6/DRP (время восстановления < 20мс)
2. Поддержка IGMP Snooping, GMRP и статический multicast
3. Сегментация сетей: VLAN, PVLAN
4. Качество связи: QoS
5. Управление пропускной способностью: port trunking, port speed limit, broadcast storm control
6. Управление устройством: при помощи CLI (консоль), Telnet, по WEB-интерфейсу, либо с помощью ПО Kyvision, SNMPv1/v2, RMON, LLDP, SNTP, DHCP
7. Безопасность сети: DT-Psec, SSH, SSL, ACL
8. Обновление прошивки: по FTP
9. Поддержка зеркалирования портов (port mirroring)
10. Сигнальный выход: ошибки на портах и в кольце, конфликт IP/MAC
11. Специальные функции:  Link Check и Loop Status Check

Стандарты

IEEE802.3i - Ethernet
IEEE802.3u - Fast Ethernet
IEEE802.3ab - 1000Base-T
IEEE802.3z - Gigabit Ethernet
IEEE802.3x - Контроль потока данных
IEEE802.1p - CoS
IEEE802.1Q - сети VLAN
IEEE802.1s - MSTP
Коммутационный режим: с буферизацией фреймов
Протоколы

DT-Ring, DT-Ring+, DT-VLAN, MSTP; IEC62439-6/DRP;
IGMP Snooping, GMRP;
VLAN, PVLAN;
Telnet, HTTP, HTTPS, SNMPv1/v2/v3, RMON, LLDP, SNTP, DHCP server;
DT-Psec, SSH, SSL, ACL;
FTP;
ARP, QoS
Производительность

Очередей приоритета: 4
Количество VLAN: 256
VLAN ID: 1-4094
Мультикаст групп: 256
Таблица MAC: 8K
Буфер пакетов: 1Mbit
Пропускная способность:  4.2Mpps
Задержки: <5μs
Интерфейсы

Gigabit Ethernet: 2 порта 1000Base-X, разъем SFP
Fast Ethernet:
2 х 100Base-FX, (Одномодовая/многомодовая оптика), разъемы FC/SC/ST
8 х 10/100Base-TX, раъем RJ45
Консольный порт: RS232 с разъемом RJ45
Сигнальный контакт: 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/350VDC Max, 120mA Max
Световая индикация

на передней панели:
- Работы устройства: Run1, Run2
- Питание: PWR1, PWR2
- Интерфейсы: Link/ACT, Speed (RJ45 порт)
Дистанция передачи

Витая пара: 100м (CAT5, CAT5e)
Оптика многомод: 1310нм, 5км (100M); 850км, 550m (1000M)
Оптика одномод: 1310нм, 40км/60км (100M); 1550нм, 60км/80км (100M); 1310нм, 10км/40км (1000M); 1550нм, 60км/80км (1000M)
Требования по питанию

Входное напряжение: 12DCW (9-36VDC), 24DCW (18-72VDC), 220AC/DCW(85-264VAC/77-300VDC)
Контакт питания:
5-pin 5.08mm-spacing plug-in terminal block (24VDC, 48VDC)
Энергопотребление: 10.6Вт (при полной нагрузке).

Защита от перегрузки: Поддерживается
Автоматическое определение полярности: Поддерживается
Резервирование: Поддерживается
Физические характеристики

Корпус: Металл, без вентиляторов
Класс защиты: IP40
Габариты (ШxВxГ): 75×140×123мм
Вес: 1.0 кг
Монтаж: DIN-рейка, на стену
Требования к окружающей среде

Рабочая температура: от -40 до 85°C
Температура для хранения: от -40 до 85°C
Относительная влажность: от 5 до 95% (без конденсации)
Наработка на отказ

223,350 ч.
Гарантия

5 лет
Сертификация

UL508,CE, FCC, ГОСТ-Р
Промышленные стандарты

EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Industry: IEC61000-6-2
Railway: EN50155, EN50121-4
Traffic Control: NEMA TS-2

Модели

Артикул Описание
SICOM3000-2GX2M6T-FC05-HV 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2M6T-FC05-L2-L2 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2M6T-FC05-L5-L5 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2M6T-SC05-HV 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2M6T-SC05-L2-L2 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2M6T-SC05-L5-L5 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2M6T-ST05-HV 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2M6T-ST05-L2-L2 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2M6T-ST05-L5-L5 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2S6T-FC40-HV 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2S6T-FC40-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2S6T-FC40-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2S6T-SC40-HV 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2S6T-SC40-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2S6T-SC40-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2S6T-SC60-HV 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2S6T-SC60-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2S6T-SC60-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2S6T-SC80-HV 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2S6T-SC80-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2S6T-SC80-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX2S6T-ST40-HV 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX2S6T-ST40-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX2S6T-ST40-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2GX8T-HV 2 Gigabit SFP ports, 8 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2GX8T-L2-L2 2 Gigabit SFP ports, 8 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2GX8T-L5-L5 2 Gigabit SFP ports, 8 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2M6T-FC05-HV 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2M6T-FC05-L2-L2 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2M6T-FC05-L5-L5 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2M6T-SC05-HV 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2M6T-SC05-L2-L2 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2M6T-SC05-L5-L5 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2M6T-ST05-HV 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2M6T-ST05-L2-L2 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2M6T-ST05-L5-L5 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2S6T-FC40-HV 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2S6T-FC40-L2-L2 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2S6T-FC40-L5-L5 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2S6T-SC40-HV 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2S6T-SC40-L2-L2 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2S6T-SC40-L5-L5 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2S6T-SC60-HV 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2S6T-SC60-L2-L2 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2S6T-SC60-L5-L5 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2S6T-SC80-HV 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2S6T-SC80-L2-L2 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2S6T-SC80-L5-L5 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-2S6T-ST40-HV 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 220AC/DCW(85-264VAC/77-300VDC) single power supply
SICOM3000-2S6T-ST40-L2-L2 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-2S6T-ST40-L5-L5 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-8T-HV 8 10/100Base-TX ports, 220AC/DCW (85-264VAC/77-300VDC) single power supply
SICOM3000-8T-L2-L2 8 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs
SICOM3000-8T-L5-L5 8 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs
SICOM3000-MA-C-2GX2M6T-FC05-L2-L2 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2M6T-FC05-L5-L5 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, FC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2M6T-SC05-L2-L2 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2M6T-SC05-L5-L5 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2M6T-ST05-L2-L2 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2M6T-ST05-L5-L5 2 Gigabit SFP ports, 2 100Base-FX multi mode fiber ports, 1310nm, 5km, ST connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-FC40-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-FC40-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, FC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-SC40-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-SC40-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-SC60-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-SC60-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 60km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-SC80-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-SC80-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1550nm, 80km, SC connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-ST40-L2-L2 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 24DCW(18-72VDC) dual redundant power inputs, intrinsic safety, PCB coating
SICOM3000-MA-C-2GX2S6T-ST40-L5-L5 2 Gigabit SFP ports, 2 100Base-FX single mode fiber ports, 1310nm, 40km, ST connector,6 10/100Base-TX ports, 12DCW(9-36VDC) dual redundant power inputs, intrinsic safety, PCB coating
