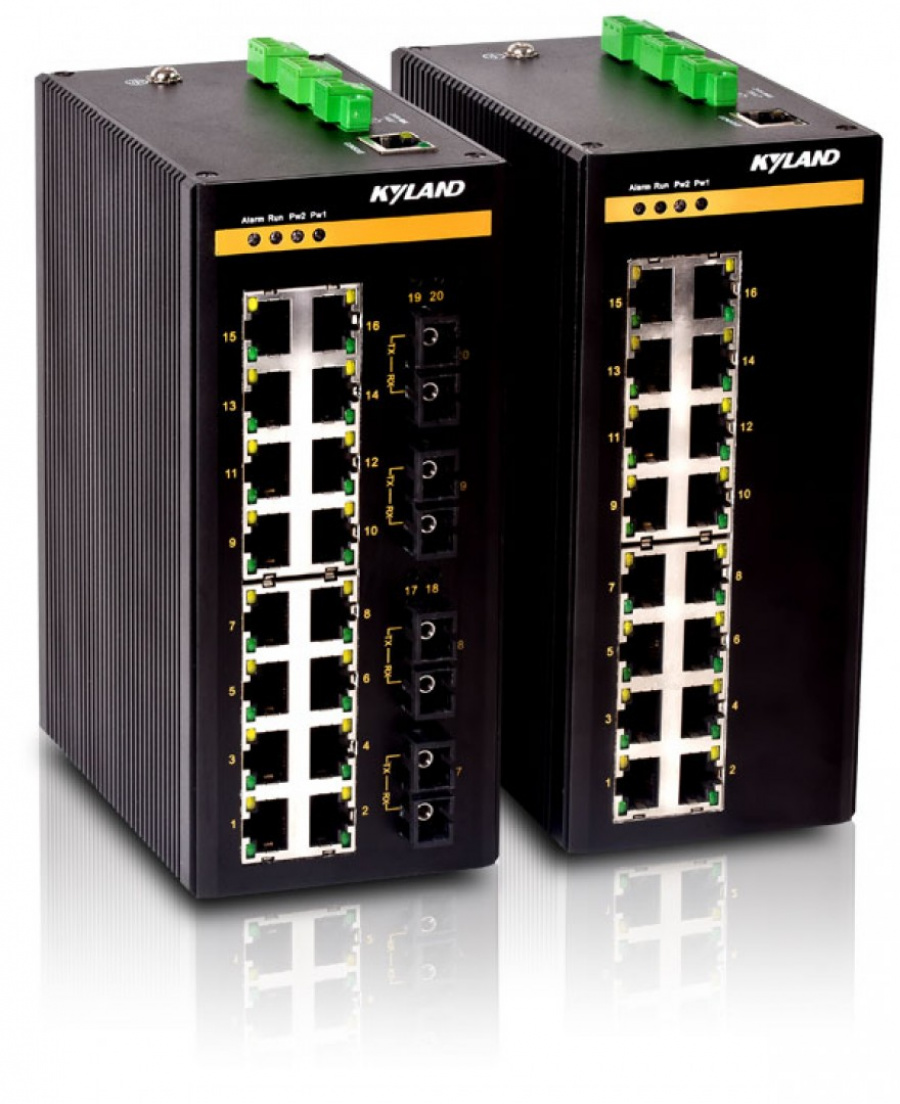

SICOM3016

Производитель: Kyland

Описание:

Коммутатор управляемый Layer 2: до 20 х 100М портов, на Din-Rail, IEC61850

SICOM3016 – серия 20-ти портовых высокопроизводительных управляемых коммутаторов для монтажа на DIN-рейку. Имеет до 4 портов 100Base-FX и 16 портов 10/100Base-T(X). Высокая производительность, прочный герметичный корпус с гофрированной поверхностью, рассеивающей тепло без вентиляторов, защита от скачков напряжения, перегрузок и электромагнитного излучения позволяют коммутатору стабильно работать в жестких промышленных условиях. Функция резервирования связей по оптике, независимый канал для управления сетью в реальном времени и резервирование по питанию гарантируют надежную работу всей систем

Особенности

  • 4 оптических порта 100Base-FX (SM/MM) и 16 портов 10/100Base-TX
  • Протокол DT-Ring, для резервирования в кольце
  • Безопсность сети: SNMPv3, HTTPS, SSH
  • Защита от ЭМИ промышленного уровня 4
  • Питание 24VDC, 48VDC, 110VDC, 220VAC/DC
  • Рабочая температура: от -40 до 85°C
  • Сертификаты CE, FCC, EAC

Возможности устройства

  • Резервирование: протоколы DT-Ring (время восстановления < 50мс), MSTP
  • IGMP Snooping, GMRP и static multicast
  • Сегментация сетей: VLAN, PVLAN
  • Качество связи: QoS
  • Управление пропускной способностью: port trunking, port speed limit, broadcast storm control
  • Управление устройством: при помощи CLI (консоль), Telnet, по WEB-интерфейсу, либо с помощью ПО Kyvision, SNMPv1/v2, RMON, LLDP, SNTP, DHCP
  • Безопасность сети: DT-Psec, SSH, SSL, ACL
  • Обновление прошивки: по FTP
  • Поддержка port mirroring
  • Сигнальный выход: ошибки на портах и в кольце, конфликт IP/MAC
  • Специальные функции: Link Check и Loop Status Check
Стандарты

IEEE802.3i - Ethernet
IEEE802.3u - Fast Ethernet
IEEE802.3x - Контроль потока данных
IEEE802.1p - CoS
IEEE802.1Q - сети VLAN
IEEE802.1s - MSTP
Коммутационный режим: с буферизацией фреймов
Протоколы

DT-Ring, DT-Ring+, DT-VLAN, MSTP;
IGMP Snooping, GMRP;
VLAN, PVLAN;
Telnet, HTTP, HTTPS, SNMPv1/v2/v3, RMON, LLDP, SNTP, DHCP server;
DT-Psec, SSH, SSL, ACL;
FTP;
ARP, QoS
Производительность

Очередей приоритета: 4
Количество VLAN: 256
VLAN ID: 1-4094
Мультикаст групп: 256
Таблица MAC: 8K
Буфер пакетов: 2Mbit
Пропускная способность:  3.0Mpps
Задержки: <5μs
Интерфейсы

Fast Ethernet:
4 x 100Base-FX (многомодовая/одномодовая оптика, разъем FC/SC/ST)
16 х 10/100Base-TX (разъем RJ45) портов
Консольный порт: RS232 с разъемом RJ45
Сигнальный контакт: 2-pin 3.81mm-spacing plug-in terminal block, 250VAC/350VDC Max, 120mA Max
Световая индикация

на передней панели:
- Работы устройства: Run
- Оповещение: Alarm
- Питание: PWR1, PWR2
- Интерфейсы: Link/ACT, Speed (RJ45 port)
Дистанция передачи

Витая пара: 100м (CAT5, CAT5e)
Оптика многомод: 1310нм, 5км (100M)
Оптика одномод: 1310нм, 40км/60км (100M); 1550нм, 60км/80км(100M)
Требования по питанию

Входное напряжение: 24VDC (18-36VDC), 48VDC (36-72VDC), 110VDC (66-154VDC), 220VAC/DC (132-300VAC/176-400VDC)
Контакт питания:
3-pin 3.81mm-spacing plug-in terminal block (24VDC, 48VDC)
3-pin 7.62mm-spacing plug-in terminal block (110VDC, 220VAC/DC)
Энергопотребление: <9.7 Вт

Защита от перегрузки: Поддерживается
Автоматическое определение полярности: Поддерживается
Резервирование: Поддерживается
Физические характеристики

Корпус: Металл, без вентиляторов
Класс защиты: IP40
Габариты (ШxВxГ): 75×165×123мм
Вес: 1.2 кг
Монтаж: DIN-рейка, на панель
Требования к окружающей среде

Рабочая температура: от -40 до 85°C
Температура для хранения: от -40 до 85°C
Относительная влажность: от 5 до 95% (без конденсации)
Наработка на отказ

333,775 ч.
Гарантия

5 лет
Сертификация

CE, FCC, ГОСТ-Р
Промышленные стандарты

EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port:
±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V
(1s)

Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Industry: IEC61000-6-2
Railway: EN50155, EN50121-4
Traffic Control: NEMA TS-2

Модели

Артикул Описание
SICOM3016-16T-H1 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-16T-H2 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-16T-L3-L3 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-1M16T-FC05-H1 1 100Base-FX multi mode fiber port, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-1M16T-FC05-H2 1 100Base-FX multi mode fiber port, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-1M16T-FC05-L3-L3 1 100Base-FX multi mode fiber port, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-1M16T-SC05-H1 1 100Base-FX multi mode fiber port, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-1M16T-SC05-H2 1 100Base-FX multi mode fiber port, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-1M16T-SC05-L3-L3 1 100Base-FX multi mode fiber port, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-1M16T-ST05-H1 1 100Base-FX multi mode fiber port, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-1M16T-ST05-H2 1 100Base-FX multi mode fiber port, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-1M16T-ST05-L3-L3 1 100Base-FX multi mode fiber port, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-1S16T-FC40-H1 1 100Base-FX single mode fiber port, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-1S16T-FC40-H2 1 100Base-FX single mode fiber port, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-1S16T-FC40-L3-L3 1 100Base-FX single mode fiber port, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-1S16T-SC40-H1 1 100Base-FX single mode fiber port, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-1S16T-SC40-H2 1 100Base-FX single mode fiber port, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-1S16T-SC40-L3-L3 1 100Base-FX single mode fiber port, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-1S16T-ST40-H1 1 100Base-FX single mode fiber port, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-1S16T-ST40-H2 1 100Base-FX single mode fiber port, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-1S16T-ST40-L3-L3 1 100Base-FX single mode fiber port, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2M16T-FC05-H1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2M16T-FC05-H2 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2M16T-FC05-L1-L1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2M16T-FC05-L3-L3 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2M16T-SC05-H1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2M16T-SC05-H2 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2M16T-SC05-L1-L1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2M16T-SC05-L3-L3 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2M16T-ST05-H1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2M16T-ST05-H2 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2M16T-ST05-L1-L1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2M16T-ST05-L3-L3 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2M8T-FC05-H1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2M8T-FC05-L1-L1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2M8T-FC05-L3-L3 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2M8T-SC05-H1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2M8T-SC05-H2 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2M8T-SC05-L1-L1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2M8T-SC05-L3-L3 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2M8T-ST05-H1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2M8T-ST05-H2 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2M8T-ST05-L1-L1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2M8T-ST05-L3-L3 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S16T-FC40-H1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S16T-FC40-H2 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S16T-FC40-L1-L1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S16T-FC40-L3-L3 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S16T-SC40-H1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S16T-SC40-H2 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S16T-SC40-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S16T-SC40-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S16T-SC60-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S16T-SC80-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S16T-ST40-H1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S16T-ST40-H2 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S16T-ST40-L1-L1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S16T-ST40-L3-L3 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S8T-FC40-H1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S8T-FC40-H2 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S8T-FC40-L1-L1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S8T-FC40-L3-L3 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S8T-SC40-H1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S8T-SC40-H2 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S8T-SC40-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S8T-SC40-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S8T-SC60-H1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S8T-SC60-H2 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S8T-SC60-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S8T-SC60-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S8T-SC80-H1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S8T-SC80-H2 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S8T-SC80-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S8T-SC80-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-2S8T-ST40-H1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-2S8T-ST40-H2 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-2S8T-ST40-L1-L1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-2S8T-ST40-L3-L3 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4M16T-FC05-H1 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4M16T-FC05-H2 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4M16T-FC05-L1-L1 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4M16T-FC05-L3-L3 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4M16T-SC05-H1 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4M16T-SC05-H2 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4M16T-SC05-L1-L1 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4M16T-SC05-L3-L3 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4M16T-ST05-H1 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4M16T-ST05-H2 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4M16T-ST05-L1-L1 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4M16T-ST05-L3-L3 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4M8T-FC05-H1 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4M8T-FC05-H2 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4M8T-FC05-L1-L1 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4M8T-FC05-L3-L3 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4M8T-SC05-H1 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4M8T-SC05-H2 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4M8T-SC05-L1-L1 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4M8T-SC05-L3-L3 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4M8T-ST05-H1 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4M8T-ST05-H2 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4M8T-ST05-L1-L1 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4M8T-ST05-L3-L3 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S16T-FC40-H1 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S16T-FC40-H2 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S16T-FC40-L1-L1 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S16T-FC40-L3-L3 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S16T-SC40-H1 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S16T-SC40-H2 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S16T-SC40-L1-L1 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S16T-SC40-L3-L3 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S16T-SC60-H2 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S16T-SC80-H2 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S16T-ST40-H1 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S16T-ST40-H2 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S16T-ST40-L1-L1 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S16T-ST40-L3-L3 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S8T-FC40-H1 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S8T-FC40-H2 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S8T-FC40-L1-L1 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S8T-FC40-L3-L3 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S8T-SC40-H1 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S8T-SC40-H2 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S8T-SC40-L1-L1 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S8T-SC40-L3-L3 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S8T-SC60-H1 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S8T-SC60-H2 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S8T-SC60-L1-L1 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S8T-SC60-L3-L3 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S8T-SC80-H1 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S8T-SC80-H2 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S8T-SC80-L1-L1 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S8T-SC80-L3-L3 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
SICOM3016-4S8T-ST40-H1 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 220AC/DC(85-264VAC/120-300VDC) single power supply
SICOM3016-4S8T-ST40-H2 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 110DC(77-154VDC) single power supply
SICOM3016-4S8T-ST40-L1-L1 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 48DC(36-72VDC) dual redundant power inputs
SICOM3016-4S8T-ST40-L3-L3 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 8 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power inputs
