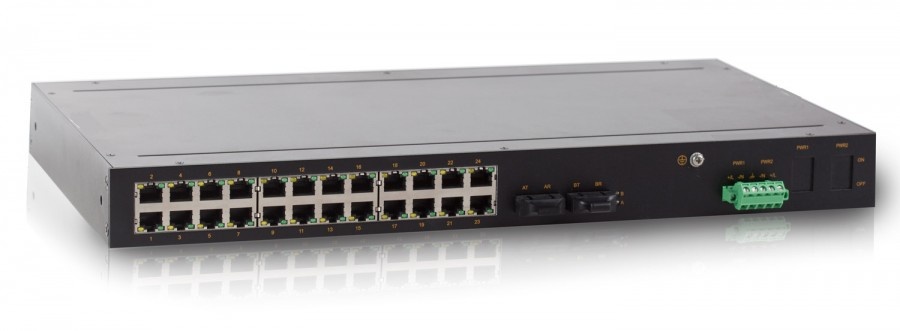

KIEN1026

Производитель: Kyland

Описание:

Неуправляемый коммутатор 26 портов: до 26 x 100M

KIEN1026 - неуправляемый коммутатор начального уровня специально разработан для промышленного применения. Он поддерживает до 24 х 10/100Base-T (X) и 2 х 100Base-FX портов, класс защиты IP40, широкий диапазон рабочей температуры от -40 до +85 ? C. Высокая производительность, прочный закрытый корпус, и отличная защита от ЭМИ (уровень 4) и в тоже время не высокая стоимость делает применение данного устройства идеальным в тяжелых и опасных производственных условиях.

Особенности:

  • Имеет 2 х 100Base-FX оптических порта, и 16 или 24 порта 10/100Base-TX RJ-45;
  • Установка передней или задней панелью;
  • Степень защиты IP40;
  • Сертификация CE / FCC, EN60959
  • Рабочая температура: от -40 до 65°C
Стандарты

IEEE 802.3i
IEEE 802.3u
Производительность

MAC Table: 8K
Packet Buffer: 4Mbit
Packet Forwarding Rate: 4.2Mpps
Switching Delay: <5μs
Интерфейсы

Fast Ethernet Fiber Ports: max 2 100Base-FX, SM/MM ports, FC/SC/ST connector
Fast Ethernet RJ45 Ports: 16 or 24 10/100Base-TX RJ45 ports
Console Port: RS232 (RJ45 connector)
Alarm Contact: 3-pin 3.81mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max, 60W Max
Световая индикация

1) LEDs on Front Panel:
Power LED: PWR1, PWR2
Interface LED: Link/ACT (Fast Ethernet port), Speed (Fast Ethernet port), DPX , Link (fiber optical port)
2) LEDs on Rear Panel:
Interface LED: Link/ACT
Port Speed LED: Speed
Дистаннция передачи

Twisted Pair:
100m (Standard CAT5, CAT5e network cable)
Multi Mode Fiber:
1310nm, 5km (100M)
Single Mode Fiber:
1310nm, 40km/60km (100M)
1550nm, 60km/80km (100M)
Требование по питанию

Power Input:
24DC (18-36VDC), 220AC/DCW (85-264VAC/77-300VDC)
Power Terminal:
5-pin 5.08mm-spacing plug-in terminal block
Power Consumption: <15W

Overload Protection: Support
Reverse Connection Protection: Support
Redundancy Protection: Support
Физические характеристики

Housing: Metal, fanless
Protection Class: IP40
Dimensions (W×H×D):
482.6×44×245mm (19×1.73×9.65 in.)
Weight: 2.5kg (5.512 pound)
Mounting: 19 inch 1U Rack mounting
Требования к окружающей среде

Рабочая температура: от -40 до 65°C
Температура для хранения: от -40 до 85°C
Относительная влажность: от 5 до 95% (без конденсации)
Наработка на отказ

341,336 часов
Гарантия

5 лет
Соответствие

CE, FCC
Промышленные стандарты

EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±8kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz); 3V/m (2-2.7GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±2kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 10V (150kHz-80MHz)

Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Industry: IEC61000-6-2
Power: IEC61850-3, IEEE1613
Railway: EN50155, EN50121-4
Traffic Control: NEMA TS-2



Модели

Артикул Описание
KIEN1026-16T-HV 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-16T-HV-HV 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-16T-L3 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-16T-L3-L3 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-24T-HV 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-24T-HV-HV 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-24T-L3 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-24T-L3-L3 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2M16T-FC05-HV 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2M16T-FC05-HV-HV 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2M16T-FC05-L3 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2M16T-FC05-L3-L3 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2M16T-SC05-HV 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2M16T-SC05-HV-HV 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2M16T-SC05-L3 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2M16T-SC05-L3-L3 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2M16T-ST05-HV 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2M16T-ST05-HV-HV 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2M16T-ST05-L3 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2M16T-ST05-L3-L3 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2M24T-FC05-HV 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2M24T-FC05-HV-HV 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2M24T-FC05-L3 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2M24T-FC05-L3-L3 2 100Base-FX multi mode ports, FC connector, 1310nm, 5km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2M24T-SC05-HV 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2M24T-SC05-HV-HV 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2M24T-SC05-L3 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2M24T-SC05-L3-L3 2 100Base-FX multi mode ports, SC connector, 1310nm, 5km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2M24T-ST05-HV 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2M24T-ST05-HV-HV 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2M24T-ST05-L3 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2M24T-ST05-L3-L3 2 100Base-FX multi mode ports, ST connector, 1310nm, 5km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S16T-FC40-HV 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S16T-FC40-HV-HV 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S16T-FC40-L3 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S16T-FC40-L3-L3 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S16T-SC40-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S16T-SC40-HV-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S16T-SC40-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S16T-SC40-L3-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S16T-SC60-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S16T-SC60-HV-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S16T-SC60-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S16T-SC60-L3-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S16T-SC80-HV 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S16T-SC80-HV-HV 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S16T-SC80-L3 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S16T-SC80-L3-L3 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S16T-ST40-HV 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S16T-ST40-HV-HV 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S16T-ST40-L3 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S16T-ST40-L3-L3 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 16 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S24T-FC40-HV 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S24T-FC40-HV-HV 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S24T-FC40-L3 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S24T-FC40-L3-L3 2 100Base-FX single mode ports, FC connector, 1310nm, 40km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S24T-SC40-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S24T-SC40-HV-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S24T-SC40-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S24T-SC40-L3-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 40km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S24T-SC60-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S24T-SC60-HV-HV 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S24T-SC60-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S24T-SC60-L3-L3 2 100Base-FX single mode ports, SC connector, 1310nm, 60km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S24T-SC80-HV 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S24T-SC80-HV-HV 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S24T-SC80-L3 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S24T-SC80-L3-L3 2 100Base-FX single mode ports, SC connector, 1550nm, 80km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
KIEN1026-2S24T-ST40-HV 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) single power supply
KIEN1026-2S24T-ST40-HV-HV 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 24 10/100Base-TX ports, 220AC/DCW(85-264VDC/77-300VDC) dual redundant power supplies
KIEN1026-2S24T-ST40-L3 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 24 10/100Base-TX ports, 24DC(18-36VDC) single power supply
KIEN1026-2S24T-ST40-L3-L3 2 100Base-FX single mode ports, ST connector, 1310nm, 40km, 24 10/100Base-TX ports, 24DC(18-36VDC) dual redundant power supplies
