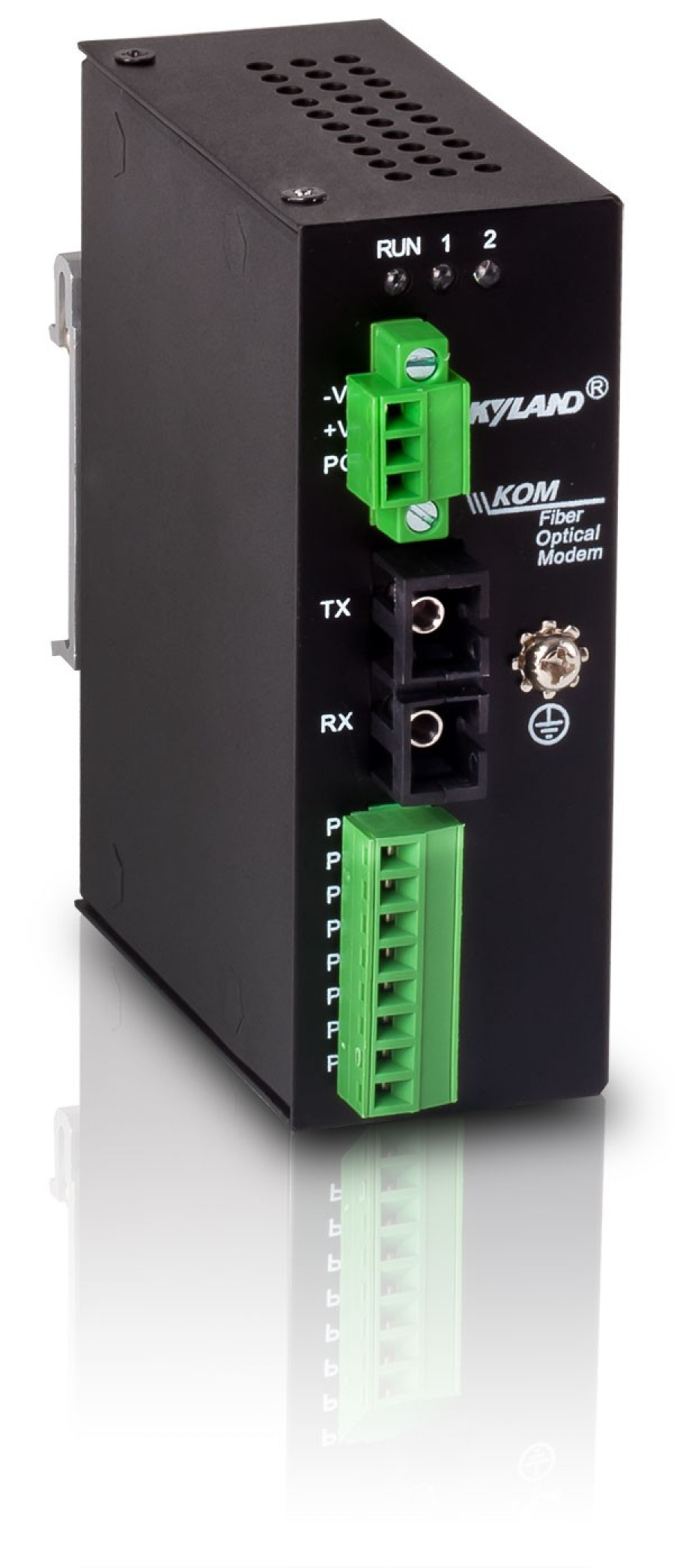

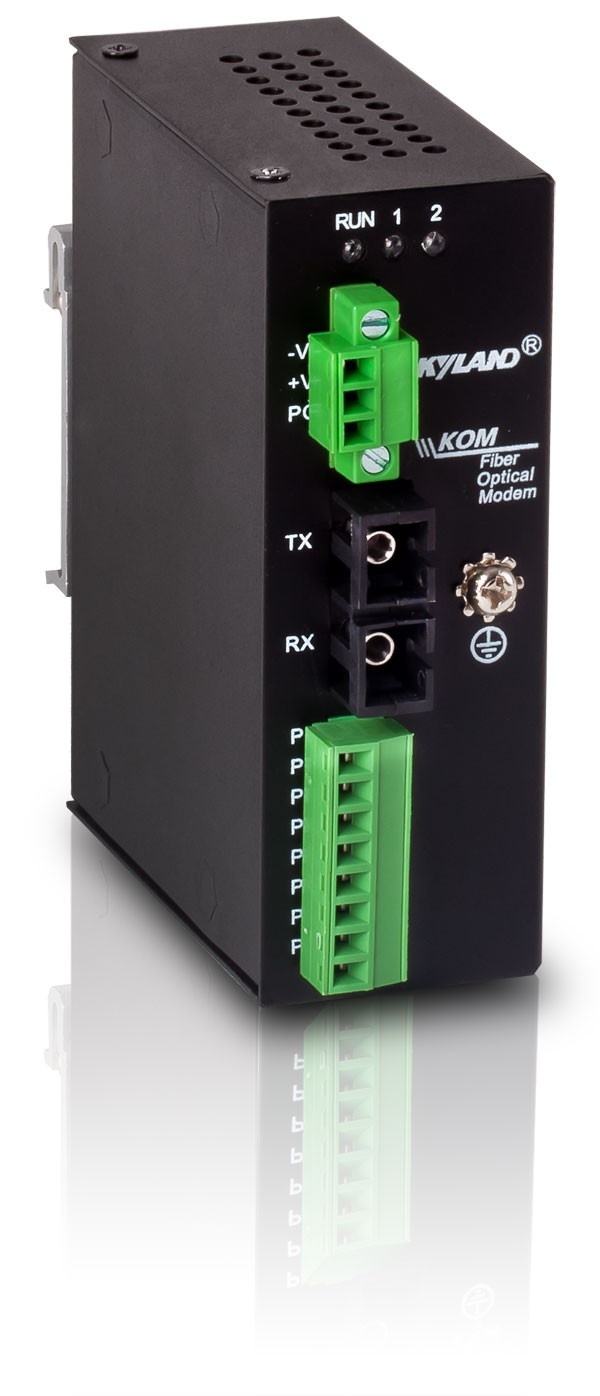

KOM200

Производитель: Kyland

Описание:

Медиаконвертер с конвертацией RS232/422/485 из оптики в медь

KOM200- промышленные медиаконвертеры выполняют конвертацию сигналов RS232, RS485 и RS422 из оптики в медь. Оборудование предназначено для работы в жестких промышленных условиях, при высоком электромагнитном излучении, имеют компактный корпус.

Особенности

1. Один оптический порт, три типа последовательных портов (RS232/RS422/RS485);
2. Прозрачная передача без необходимости отладки;
3. Последовательные порты имеют защиту ESD 15кВ;
4. Последовательные порты поддерживают горячее подключение;
5. Различные варианты входного питания 12DCW(9-36VDC)/ 48DC(36-72VDC)/ 110DC(77-154VDC)/ 220AC/DC(85-264VAC/120-300VDC);
6. Высокая электромагнитная защищенность (4-го уровня)
7. Класс защиты: IP30
8. Рабочая температура: от -40 до 85°C

Стандарты.

RS232
RS422
RS485
Интерфейсы

Оптический порт: один (Одномодовая/многомодовая оптика), разъемы (FC/SC/ST - опционально)
Последовательный порт: 3 порта (RS232/RS422/RS485), контакт: 8-pin 3.81mm-spacing terminal block,
RS485 может быть подключен к 32-128 узлам
Световая индикация

на передней панели:
- Работы устройства: Run
- Интерфейсы: Link/ACT, Data (1, 2)
Дистанция передачи

Последовательный: RS232: 15м; RS422/RS485: 1200м
Витая пара: 100м (CAT5, CAT5e)
Оптика многомод: 1310нм, 5км (100M)
Оптика одномод: 1310нм, 40км/60км (100M); 1550нм, 60км/80км (100M)
Требования по питанию

Входное напряжение: 12DCW(9-36VDC),48VDC (36-72VDC), 110DC(70-140VDC), 220AC/DC (85-264VAC/120-370VDC)
Контакт питания: 3-pin 3.81mm-sapcing plug-in terminal block
Энергопотребление: <3 Вт

Защита от перегрузки: Поддерживается
Автоматическое определение полярности: Поддерживается
Физические характеристики

Корпус: Металл, без вентиляторов
Класс защиты: IP30
Габариты (ШxВxГ): 36×100×75мм
Вес: 0.3 кг
Монтаж: DIN-рейка или на стену
Требования к окружающей среде

Рабочая температура: от -40 до 85°C
Температура для хранения: от -40 до 85°C.
Относительная влажность: от 5 до 95% (без конденсации).
Наработка на отказ

1,162,867 часов
Гарантия

5 лет
Сертификация

 CE, FCC, ГОСТ-Р
Промышленные стандарты EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-1GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m (cont.), 1000A/m (1s-3s)
IEC61000-4-9 (Pulsed magnetic field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m
IEC61000-4-12 (Oscillatory wave): 2.5kV/CM, 1kV/DM
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Industry: IEC61000-6-2
Railway: EN50155, EN50121-4

Модели

Артикул Описание
KOM200-1M-FC05-232/422-L5 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 12DCW(9-36VDC) single power supply
KOM200-1M-FC05-485/232A-H1 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-FC05-485/232A-H2 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 110DC(77-154VDC) single power supply
KOM200-1M-FC05-485/232A-L5 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 12DCW(9-36VDC) single power supply
KOM200-1M-FC05-485/232-H1 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-FC05-485/232-L5 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 12DCW(9-36VDC) single power supply
KOM200-1M-SC05-232/422-H1 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-SC05-232/422-H2 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 110DC(77-154VDC) single power supply
KOM200-1M-SC05-232/422-L1 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 48DC(36-72VDC) single power supply
KOM200-1M-SC05-232/422-L5 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 12DCW(9-36VDC) single power supply
KOM200-1M-SC05-485/232A-H1 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-SC05-485/232A-L5 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 12DCW(9-36VDC) single power supply
KOM200-1M-SC05-485/232-H1 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-SC05-485/232-H2 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 110DC(77-154VDC) single power supply
KOM200-1M-SC05-485/232-L5 1 100Base-FX multi mode port, SC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 12DCW(9-36VDC) single power supply
KOM200-1M-ST05-232/422-H1 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-ST05-232/422-L5 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS232 serial port, 1 RS422 serial port, 12DCW(9-36VDC) single power supply
KOM200-1M-ST05-485/232A-H1 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-ST05-485/232A-L1 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 48DC(36-72VDC) single power supply
KOM200-1M-ST05-485/232A-L5 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 12DCW(9-36VDC) single power supply
KOM200-1M-ST05-485/232-H1 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1M-ST05-485/232-H2 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 110DC(77-154VDC) single power supply
KOM200-1M-ST05-485/232-L1 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 48DC(36-72VDC) single power supply
KOM200-1M-ST05-485/232-L5 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, 12DCW(9-36VDC) single power supply
KOM200-1M-ST05-V.24-L3 1 100Base-FX multi mode port, ST connector, 1310nm, 5km, support V.24, 24DC(18-36VDC) single power supply
KOM200-1S-FC40-232/422-H1 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS232 serial port, 1 RS422 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-FC40-232/422-L5 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS232 serial port, 1 RS422 serial port, 12DCW(9-36VDC) single power supply
KOM200-1S-FC40-485/232A-H1 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-FC40-485/232A-H2 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 110DC(77-154VDC) single power supply
KOM200-1S-FC40-485/232A-L5 1 100Base-FX multi mode port, FC connector, 1310nm, 5km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 12DCW(9-36VDC) single power supply
KOM200-1S-FC40-485/232-H1 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-FC40-485/232-H2 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 110DC(77-154VDC) single power supply
KOM200-1S-FC40-485/232-L5 1 100Base-FX single mode port, FC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 12DCW(9-36VDC) single power supply
KOM200-1S-SC40-232/422-H1 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS232 serial port, 1 RS422 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-SC40-232/422-L5 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS232 serial port, 1 RS422 serial port, 12DCW(9-36VDC) single power supply
KOM200-1S-SC40-485/232A-H1 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-SC40-485/232A-L1 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 48DC(36-72VDC) single power supply
KOM200-1S-SC40-485/232A-L5 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 12DCW(9-36VDC) single power supply
KOM200-1S-SC40-485/232-H1 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-SC40-485/232-H2 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 110DC(77-154VDC) single power supply
KOM200-1S-SC40-485/232-L5 1 100Base-FX single mode port, SC connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 12DCW(9-36VDC) single power supply
KOM200-1S-ST40-232/422-L5 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS232 serial port, 1 RS422 serial port, 12DCW(9-36VDC) single power supply
KOM200-1S-ST40-485/232A-H1 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-ST40-485/232A-H2 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 110DC(77-154VDC) single power supply
KOM200-1S-ST40-485/232A-L5 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 12DCW(9-36VDC) single power supply
KOM200-1S-ST40-485/232-H1 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 220AC/DC(85-264VAC/120-300VDC) single power supply
KOM200-1S-ST40-485/232-H2 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 110DC(77-154VDC) single power supply
KOM200-1S-ST40-485/232-L5 1 100Base-FX single mode port, ST connector, 1310nm, 40km, 1 RS485 serial port, 2 RS232 serial port, 12DCW(9-36VDC) single power supply
