TC-NC27VX

Производитель: Tiandy

Описание:

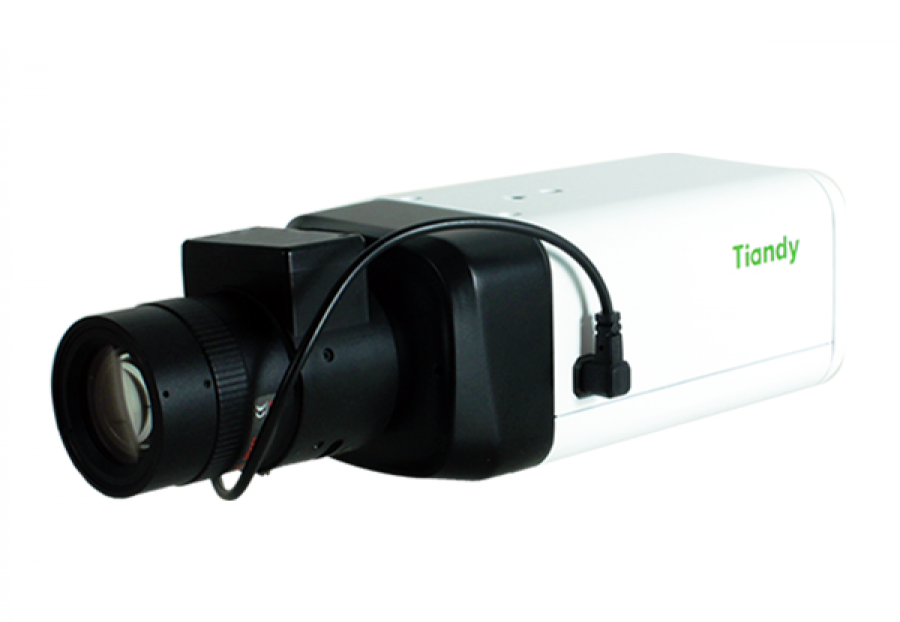

2Мп H.265 Super Starlight ABF Box камера в стандартном корпусе

Общая информация
Характеристики

Особенности:

Starlight Ultra Low Light 0.0008lux;
Разрешение 1080P (1920×1080@60fps);
Формат видесжатия H.265/H.264 HP/MP/BP/M-JPEG;
Мин. световая чувствительность: 0.0008 Lux,B/W: 0.001 Lux, 0 Lux with IR;
Механический WDR 140dB;
Браузеры: Chrome,Firefox, Safari, Plug-in Free
VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection;
NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
Аудио вход / выход 1/0, тревожный вход / выход 1/0;
Cлот для карты Micro SD слот до 512G, до 128GB, кнопка сброса;
Грозозащита TVS 6000В/ защита от перенапряжения 2000В, IP67;
Питание DC12 В ± 10%, поддержка PoE (802.3af);
Рабочая температура: от -35 °C до 60 °

Camera
Image Sensor	1/1.8" CMOS
Core Processor	ARM9 Architecture
Operating System	Embedded LINUX
Signal System	PAL/NTSC
Mini. Illumination	Color: 0.0008 Lux @(F1.2, AGC ON) B/W: 0.0001Lux @(F1.2, AGC ON)
Shutter Time	1s~1/100000s
Lens Interface Type	C/CS
Day& Night	IR Cut Filter With Auto Switch
Wide Dynamic Range	140 dB
Digital Noise Reduction	3D DNR
S/N Ratio	>60dB
Compression Standard
Video Compression	S+265/H.265/H.264H/H.264M/H.264B/MJPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM/AAC
Audio Bit Rate	G711 8KHz, 64kbps
	ADPCM 8KHz, 32kbps
	AAC 48KHz, 96-320kbps
Frame Rate	50Hz: 25fps (1920 × 1080), 25fps (1280 × 720)
Frame Rate	60Hz: 30fps (1920 × 1080), 30fps (1280 × 720)
Triple Stream	Mainstream:1080P(1920*1080)
	Substream:D1(704*576)
	3rd stream:CIF(352*288)
Image Settings	Brightness, Saturation, Contrast,Flip Mode
ABF	Y?Auto Adjust ±1mm Back Focus?
HLC	Y
Smart Defog	Y
Corridor Format	Y, Available for 720P and Above
EIS	Y
ROI	8 Zones
Privacy Mask	4 Zones
Picture Overlay	200 × 200, BMP 24bit, Zone Configurable
OSD	16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions
Network
Browser	CHROME V45 or lower, IE, FIREFOX
Network Storage	FTP
NTP	Y
ANR	Y
Video Analytics	Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost
	Running/Loitering/Parking/Crowd/Face Detection/People Counting
	Audio Abnormal Detection/Video Abnormal Detection/On duty Detection
Protocols	IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/ICMP/IGMP
Protocols	/NTP/RTSP/TCP/UDP/DHCP/PPPoE/HTTPS/ARP/RTP/QoS/MULITCAST
User Permission	4 Level/8 users
Remote Connection	8 Users Access at the Same Time
System Compatibility	ONVIF (Profile S), SDK
Interface
Audio Input	1-ch
Audio Output	1-ch
Ethernet	2-ch RJ45 100M / 1000M Ethernet Interface(Support 2 IP Address)
Alarm Input	2-ch
Alarm Output	1-ch
Video Output	1Vp-p Composite Output?75Ω/BNC?
On-board Storage	Dual MicroSD Card Slots, up to 512GB
RS485	Y
RS232	Y
Extension	USBx1
General
Language	English,Spanish,Korean,Italian,Turkish,Thai,Russian
Language	Polish,French,Traditional Chinese,Simplified Chinese
Power Supply	DC 12V±10%/AC24V±10%/PoE
Power Consumption	Max. 6W
Circuit Protection	TVS 6000V, Lightning/Surge 2000V
Dimensions	145mm×71mm×58mm
Weight	0.5KG (IP Camera Only); 0.7KG (With Packing Box)

S+265:	Tiandy enhanced H.265 codec
ANR:	Auto store video in SD card when NVR disconnected, and upload video to
	NVR when resumed connection(Only Support Tiandy ANR NVR)
